Centrifugal Gearbox

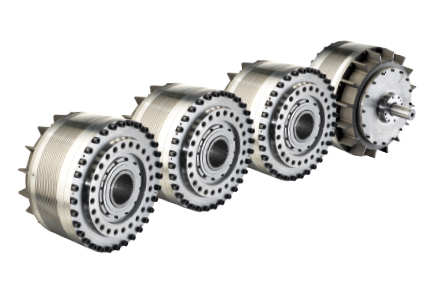

Nidec DESCH offers three powerful gearbox technologies for centrifuges:
Each design offers specific advantages and is ideally suited to different performance ranges and applications. This enables Nidec DESCH to always provide the optimum, efficient and reliable drive solution for your separation process.
Nidec DESCH operates its own state-of-the-art test rigs, on which every gearbox undergoes a comprehensive test run. At the same time, these test rigs serve as development platforms for new solutions and technical advancements.
This is how we ensure the highest levels of quality, reliability and innovation – for every single gearbox.
Contact us nowCustomer benefits at a glance:
Higher process stability
The integrated mechanical differential stage ensures reliable and consistent speed control, even with fluctuating material properties.
Optimised processing of inhomogeneous materials
Variable speed control improves adaptation to different material structures, increasing the efficiency of the decanter process.
Greater flexibility in machine control
Customers can fine-tune speed settings and optimise the overall process more effectively.
Enhanced performance of the proven ZG series
The new stage complements the robust basic design and functionally increases the value of the existing technology.
Industries and Sectors Served by Nidec DESCH Centrifuge Gear Technology
Our planetary and cycloidal gearboxes are used in the following industries:
Environmental Technology
- Wastewater Treatment
- Sludge Dewatering and Thickening
- Process Fluid Recycling
- Sustainable Environmental Solutions
Chemistry
- Basic Chemical Raw Materials
- Petrochemicals and Polymers
- Specialty and Functional Chemicals
- Metal Extraction and Processing
Food and Raw Food Materials
- Edible Oils and Fats
- Starches and Carbohydrates
- Beverages and Dairy Products
- Extracts, Concentrates, and Seasonings
Mining
- Raw Material Extraction
- Separation and Dewatering Processes
- Dewatering and Tailings Management
- Water and Resource Recycling
Planetary Gearboxes – ZG series
In addition to existing sizes and ratios, Nidec DESCH also offers customised solutions tailored precisely to customer requirements.
Technical Data
- Torque range 8,000 Nm - 120,000 Nm
- Ratio range – 187 ... + 237
Applications
- Centrifuges
- Decanters
Advantages/Features
- Planetary gearboxes (single to three-stage design)
- High speeds
- High torque
- Available with splash lubrication as well as oil circulation lubrication
Differential Gearboxes - ZGD series
The new generation of differential gearboxes for the decanter market is based on the proven ZG series and has been enhanced with an additional differential stage. By integrating this mechanical differential stage, Nidec DESCH enables variable speed control within the customer’s machine.
This provides significant technical added value, particularly when processing inhomogeneous materials, ensuring optimised process stability and increased operating efficiency.
On request, sizes can be engineered to meet specific project requirements.
Technical Data
- Torque range 8,000 Nm - 120,000 Nm
- Ratio range – 187 ... + 237
Applications
- Centrifuges
- Decanters
Advantages/Features
- Customizable sizes and gear ratios tailored to customer requirements
- Increased process stability through integrated mechanical differential stage
- Efficient processing of inhomogeneous materials via variable speed control
- Greater flexibility and performance based on the proven ZG platform
Cycloidal Gearboxes - ZGC series
The ZGC cycloidal gearbox series has been specifically designed for centrifuge and decanter applications and features a space-saving, flange-mounted design. Customers benefit from maximum power transmission and exceptional durability, making this product the ideal choice for demanding industrial applications.
The compact design increases stiffness and reduces potential vibrations. Customised designs are available on request.
Technical Data
- Torque range 2,100 Nm - 21,000 Nm
- Ratio range 21 - 87
Applications
- Centrifuges
- Decanters
Advantages/Features
- Space‑saving, flange‑mounted cycloidal design for compact integration
- Maximum power transmission with exceptional durability for demanding applications
- Compact design increases stiffness and reduces potential vibrations
