Gear Couplings - GC

Gear Couplings - GC - Flexible, Durable, and Reliable

The Nidec DESCH Gear Coupling GC is a flexible shaft connection designed for positive torque transmission. It effectively compensates for radial, axial, and angular shaft displacements, providing high flexibility in operation.

Manufactured from high-quality tempered steel and featuring a round ring seal, the Gear Coupling GC ensures maximum operational safety and long service life. The optimised grease lubrication of the crowned gearing minimises maintenance while maximising efficiency.

The Gear Coupling GC is highly versatile and suitable for almost all areas of mechanical engineering. It stands out for its robustness and its ability to transmit torque ranging from 1,920 to 8,000,000 Nm.

Typically installed horizontally, the coupling simplifies operation while maintaining excellent performance. With its combination of flexibility, durability, and reliability, the Nidec DESCH Gear Coupling GC is the ideal choice for demanding drive applications.

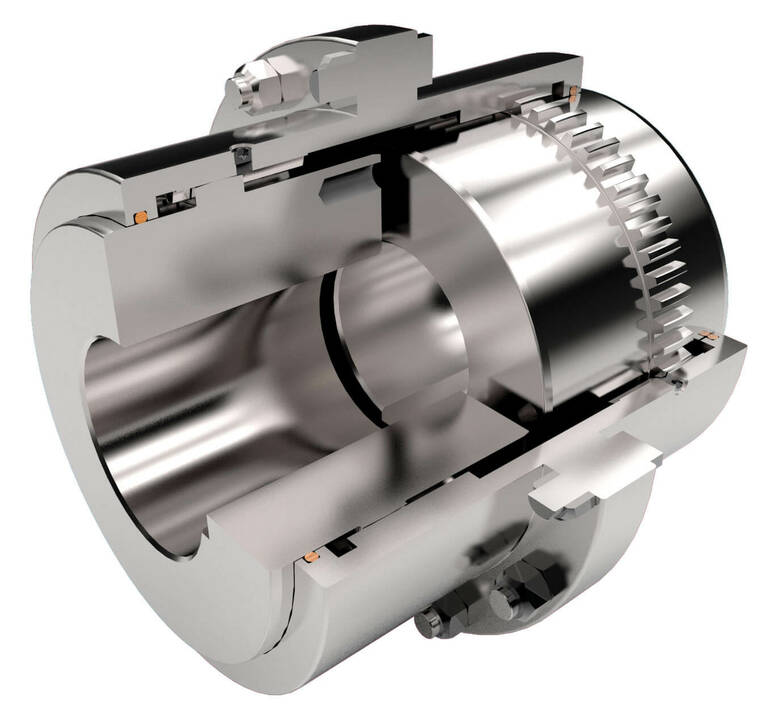

 GC - Standard coupling

GC - Standard coupling

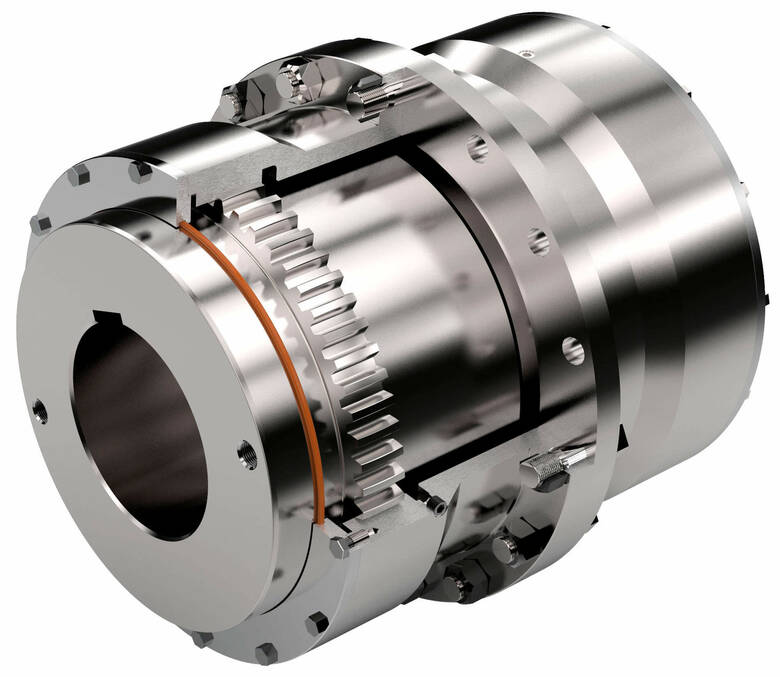

 GC - Standard heavy load coupling

GC - Standard heavy load coupling

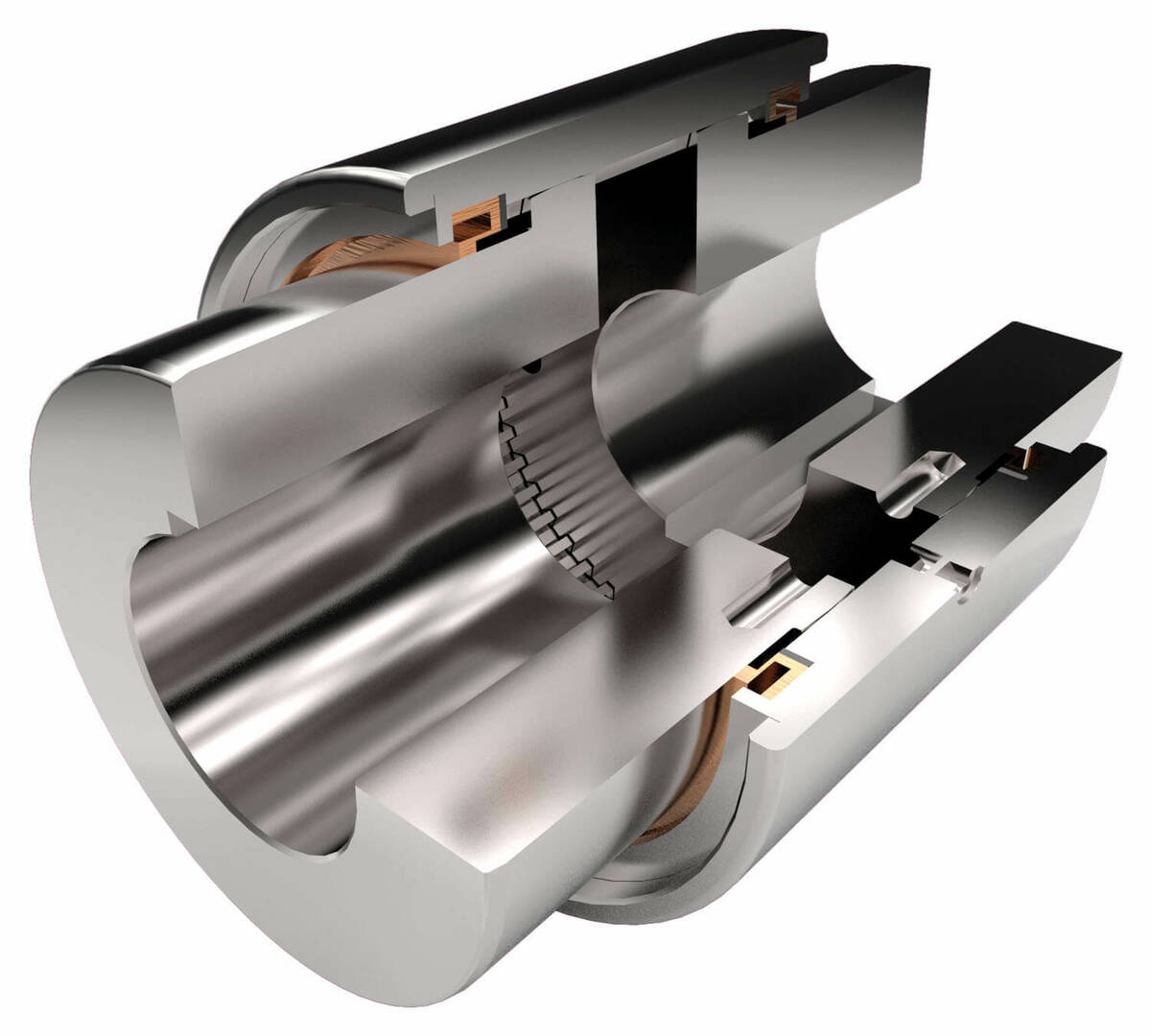

 GCY - with one-piece sleeve

GCY - with one-piece sleeve

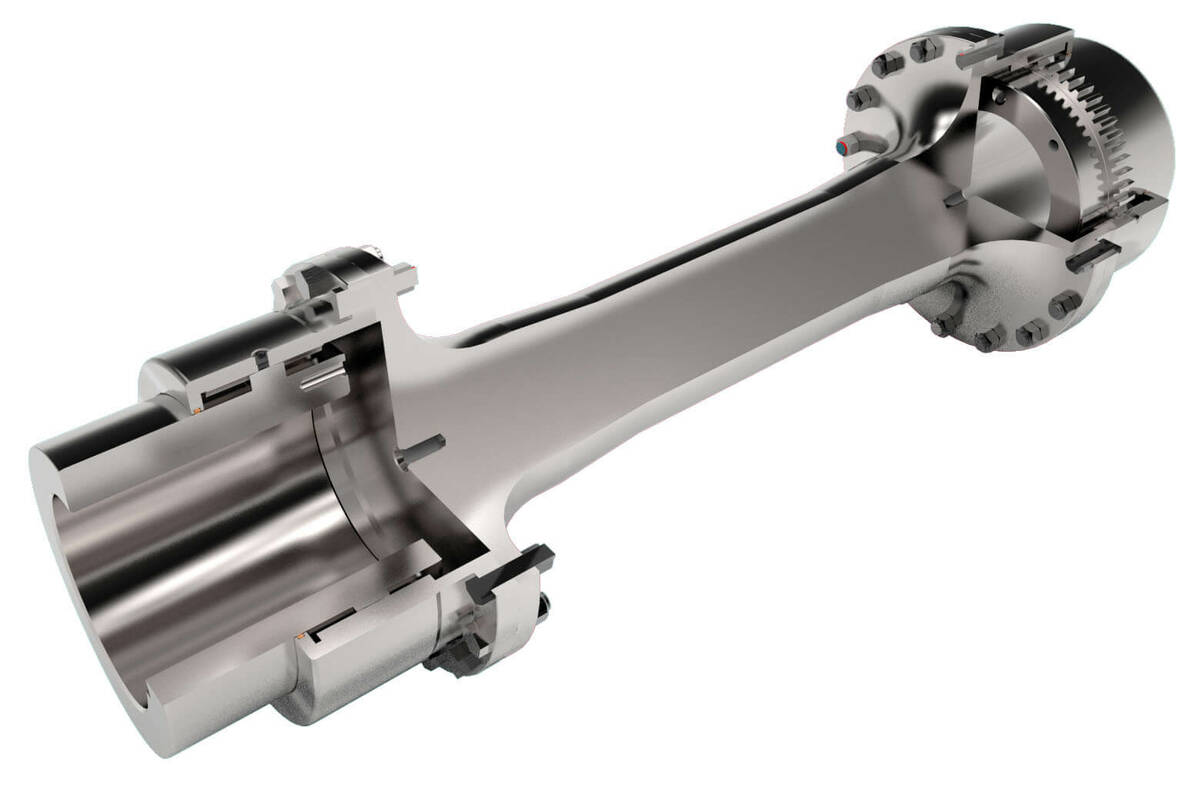

 GCLE - with intermediate shaft

GCLE - with intermediate shaft

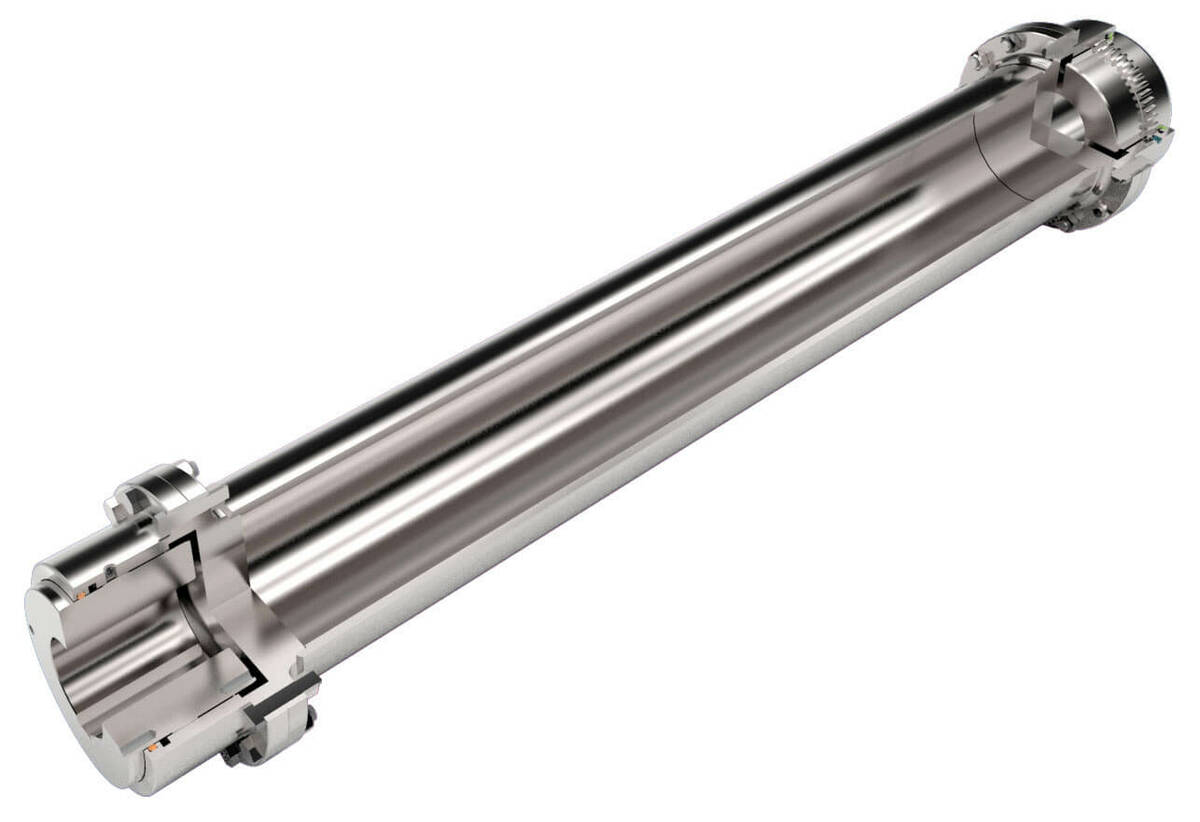

 GCX - with spacer sleeve

GCX - with spacer sleeve

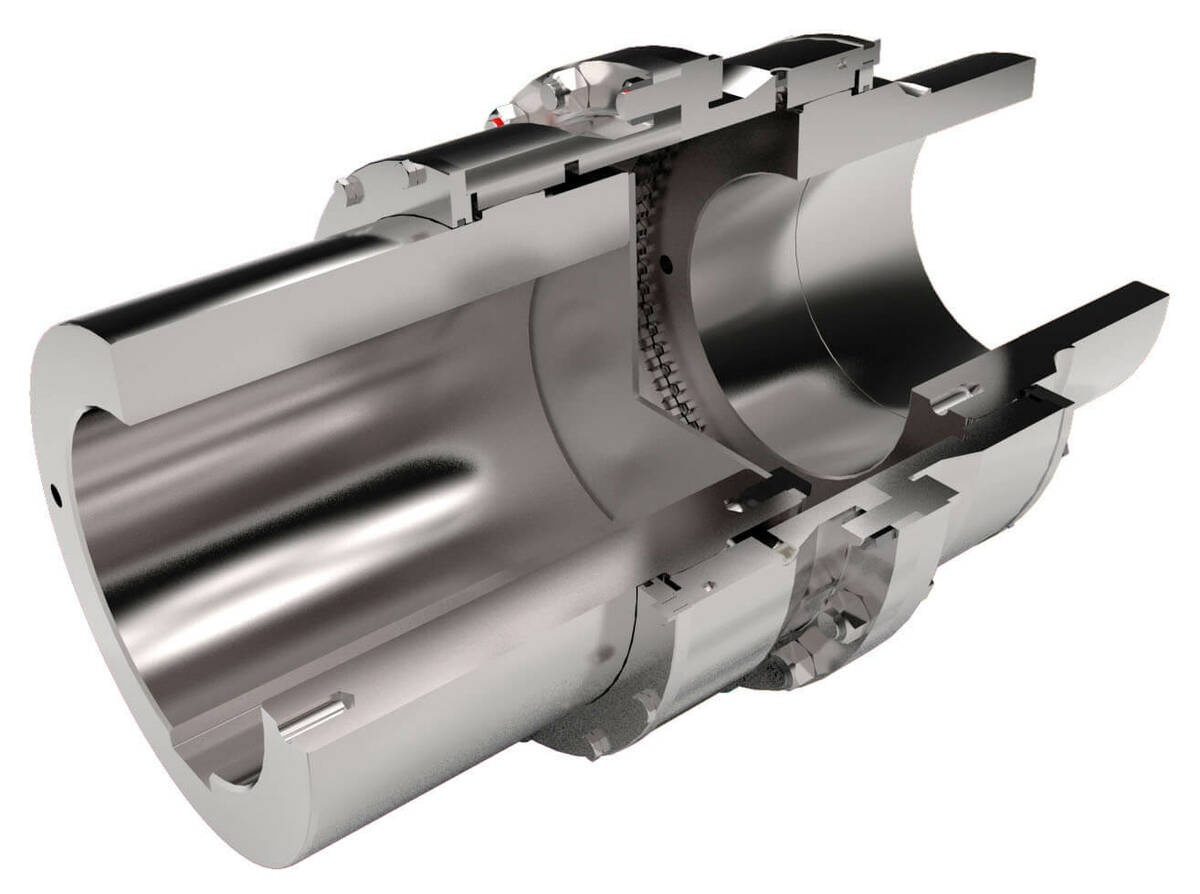

 GCL - with extended hubs

GCL - with extended hubs

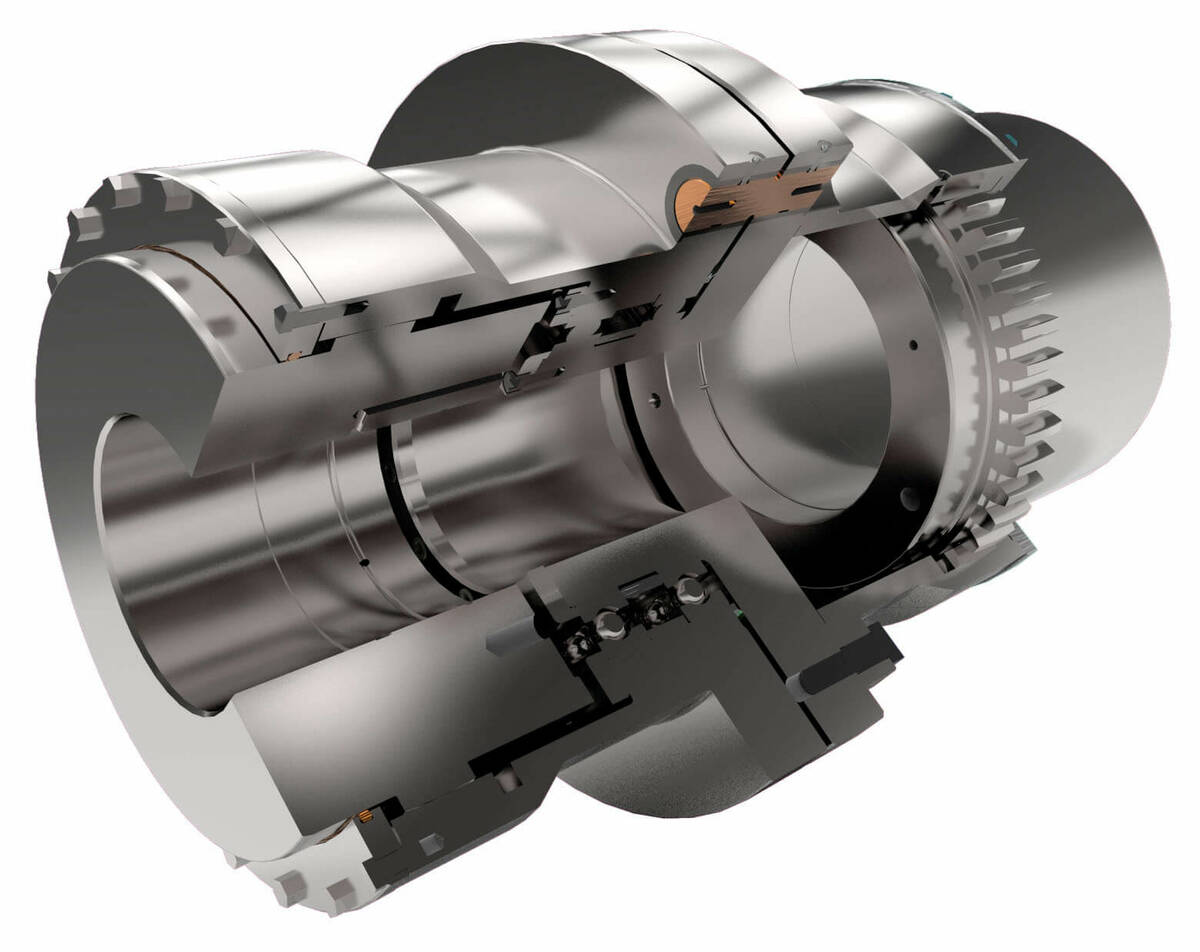

 GCT - with shear pins

GCT - with shear pins

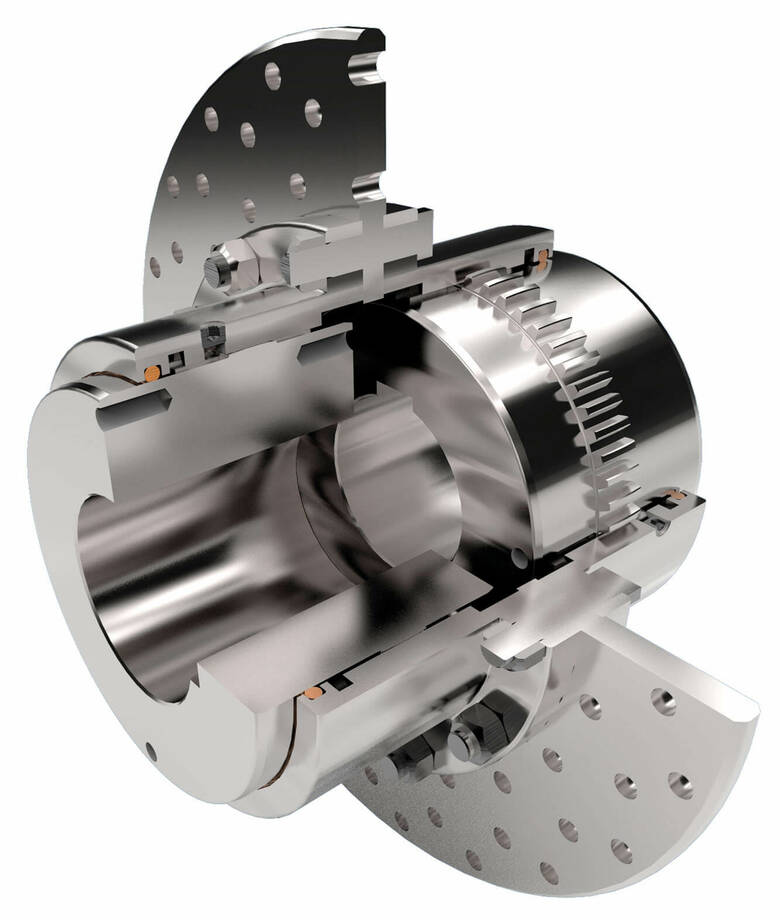

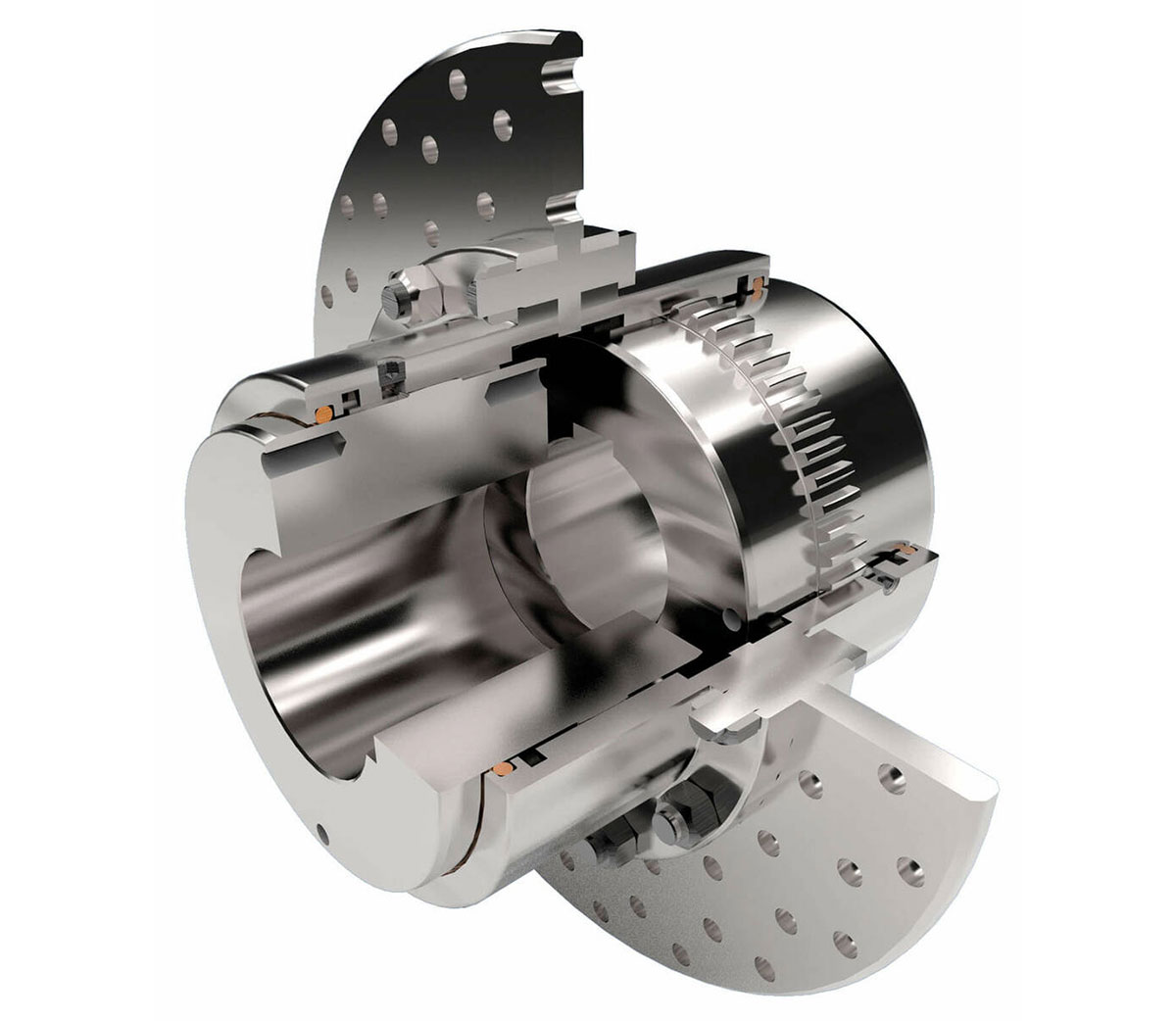

 GCB - with brake disc

GCB - with brake disc

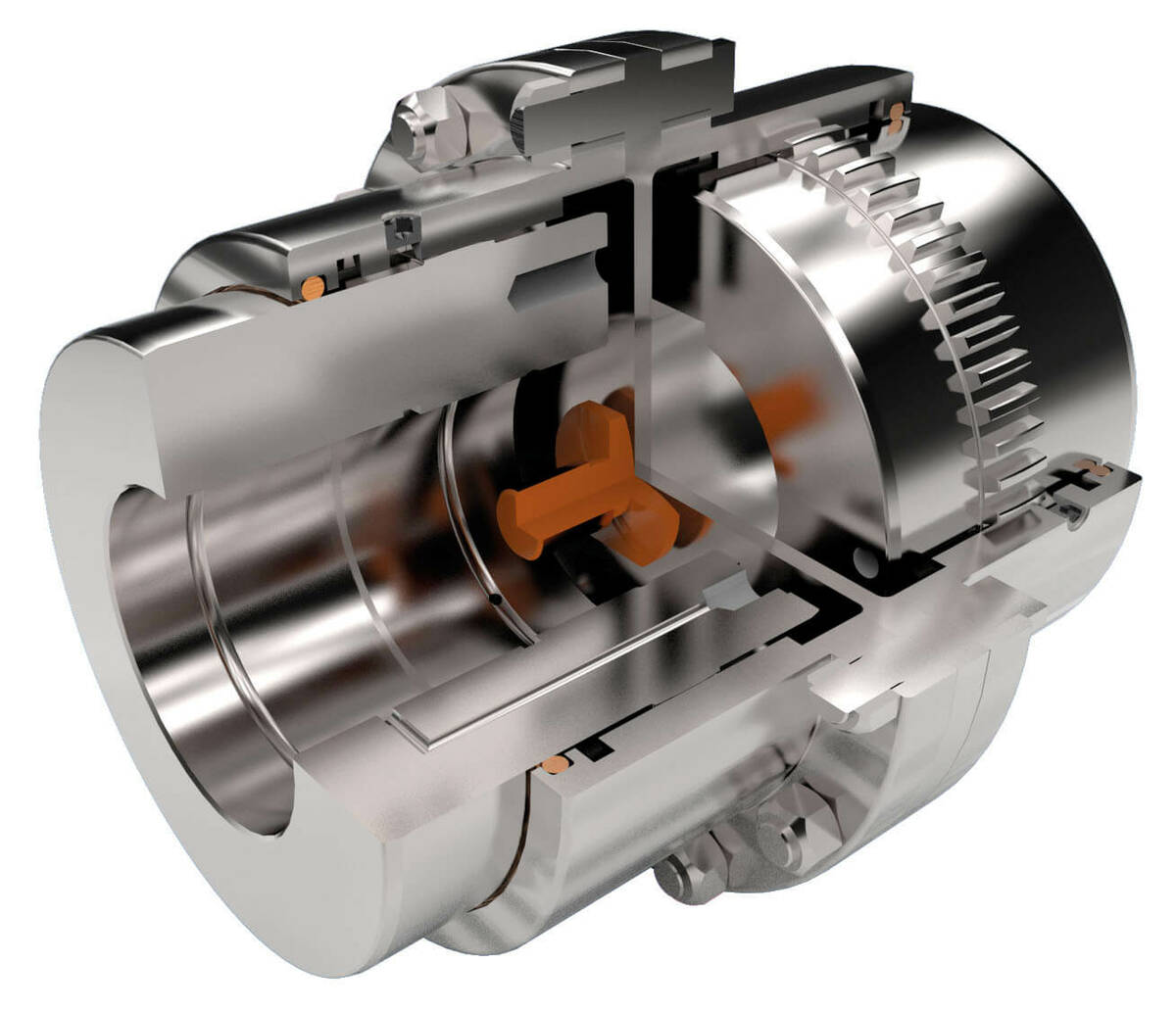

 GCV - for vertical drives

GCV - for vertical drives

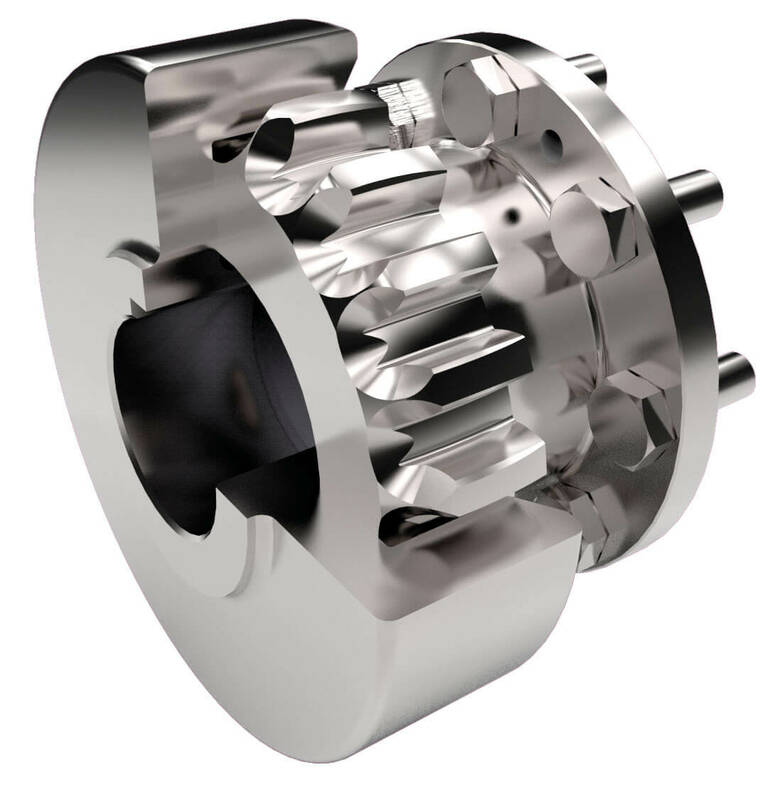

 GCTAM - Special type for winder

GCTAM - Special type for winder

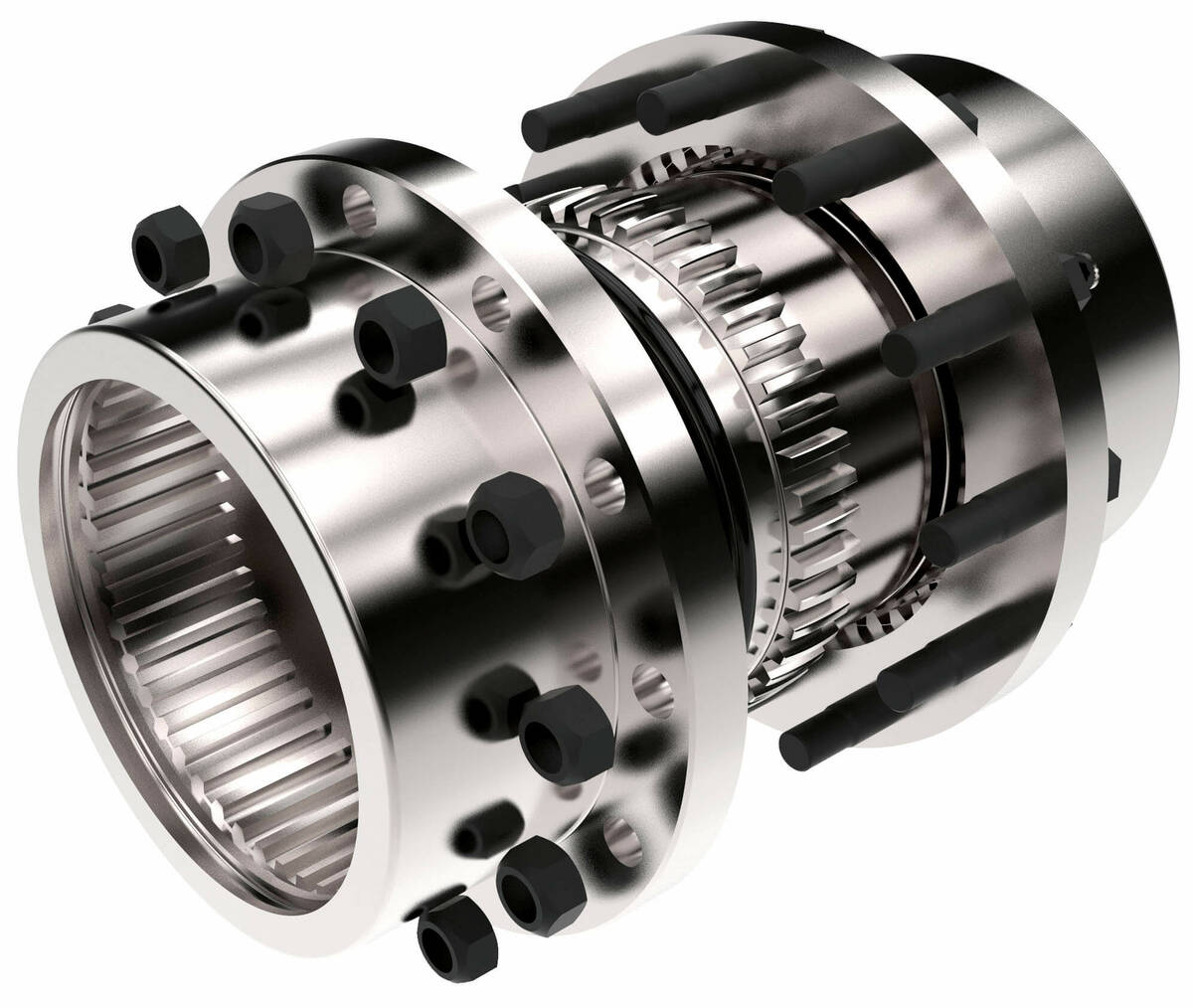

GC-ECO - Economic standard coupling

GC-ECO - Economic standard coupling

More Information

GC-ECO - Economic standard coupling

Description


Nidec DESCH gear couplings GC-ECO are economic and torsionally stiff shaft connections suitable for a positive torque transmission. They ensure the flexible compensation of shaft misalignments as well. The gear coupling is made of high tensile steel with grease lubrication and O-ring seal. Nidec DESCH gear couplings GC-ECO are used in all areas of mechanical engineering and offers a long service life with maximum reliability, resulting from the optimal grease lubrication of the crowned spline. The couplings are generally suitable for a horizontal assembly. Special types are suitable for vertical assembly, too.

Torque 1.900 to 200.000 Nm
