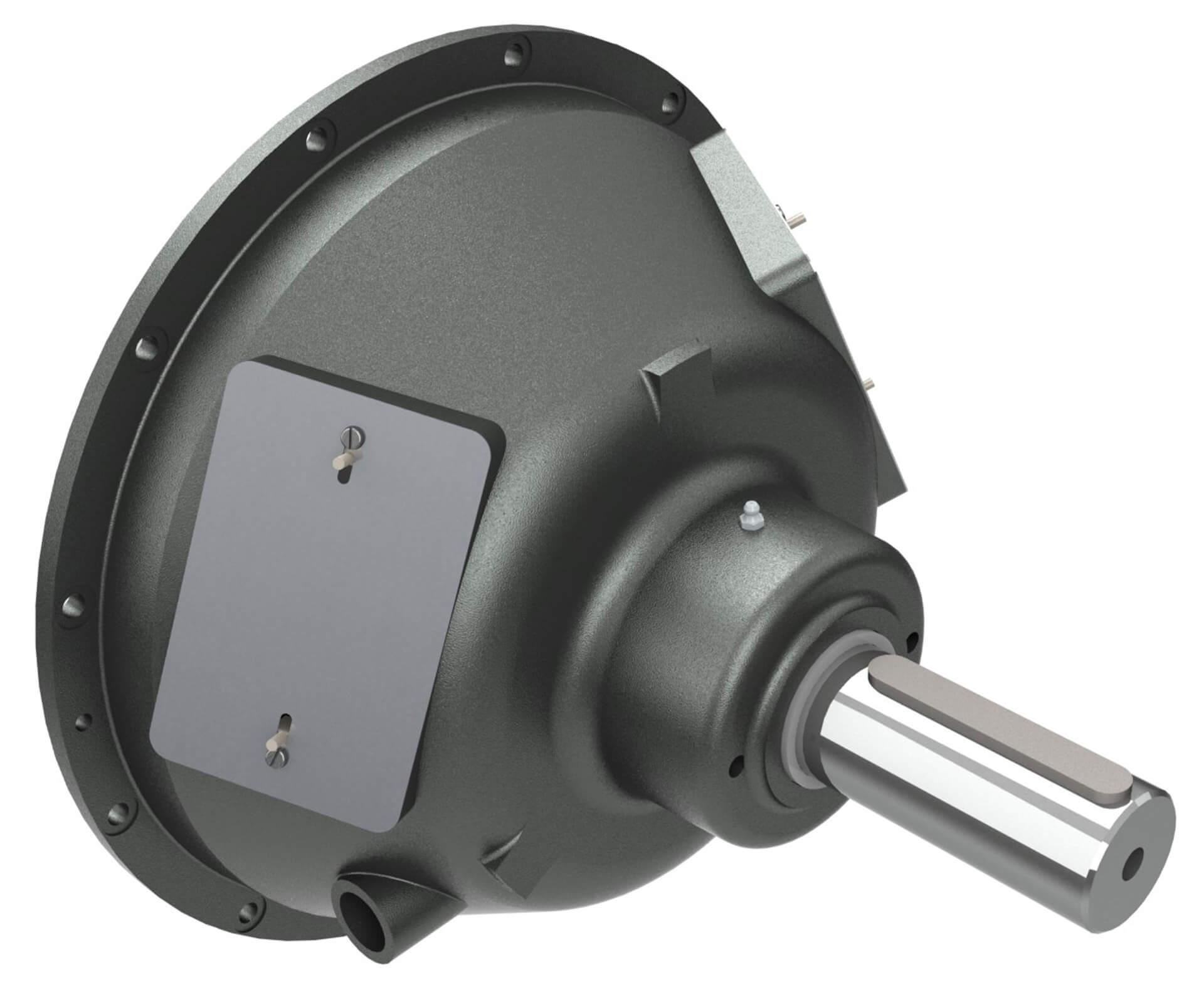

The pneumatically engageable Planox® clutch type PPA corresponds to type PP in terms of function and mode of operation. Due to the so-called housing design, it is identical to the PMA type in terms of dimensions, applications and torque specifications, whereby the power take-off can be carried out exclusively via belt drives or comparable drive elements.
areas of application: Mobile machinery Recycling Marine Energy Rubber & Plastics Agricultural machinery & municipal technology General mechanical engineering
Contact us now
Product information
Technical Data
-
Torque range from 150 Nm to 10,500 Nm
-
Housing connection SAE 6 to SAE 00
-
Flywheel connection 6" to 24"
Advantages/properties
- Rapid acceleration of machines or machine groups possible
- Precise adjustment of transferable torque via compressed air supply
- Wear is compensated through piston stroke
- Protection of machines connected via friction clutch
Areas of use
- Road milling machines
- Crushers
- Shredders
- Belt conveyors
- On deck equipment
- Ship main propulsion
- Combine harvesters
- Municipal vehicles
- Piston pumps
- Hoists
- Compressors
- Extruders
- And other applications
