FLEXWAVE- strain wave gear technology

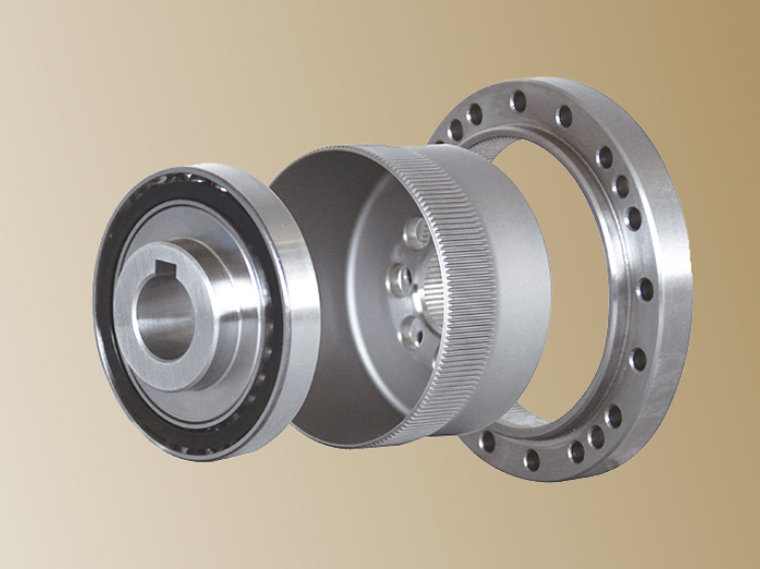

FLEXWAVE is a compact harmonic gear reduction mechanism that achieves zero backlash, as well as exceptional positioning accuracy, torque density and repeatability. FLEXWAVE consists of three internal elements – the flexspline, the circular spline and the wave generator. The elasticity properties of the flexspline and the teeth differential between the flexspline and the circular spline result in its unique reduction characteristics.
FLEXWAVE comes in various form factors, including component sets, simple contained assemblies and complete gear units. Cup, hat, solid and hollow input shaft configurations give engineers true freedom in design. FLEXWAVE is also available in Ultra-Flat and High Torque variations for applications with demanding footprint and performance requirements. Dimensions are interchangeable against industry standards, making it easier to implement in legacy equipment.
Interested and want to find out more?
Download our catalogues and find out more!
Field of Application of the FLEXWAVE- strain wave gear technology
Robotics
Cobots
Bionics
Machine Tools
Semiconductor Manufacturing
Aerospace and Aviation
Automation
Medical Technology
The advantages at a glance
- Exceptional Repeatability and Positional Accuracy
- Zero Backlash
- High Torque Density
- High Efficiency Ratings
- High Reduction Ratios in a Single Stage
- Lightweight and Compact
- High Torsional Stiffness
- Fully Back Drivable
