Contract Manufacturing
Our range of services in contract manufacturing -
Quality and precision at the highest level
Our range of contract manufacturing services offers you comprehensive options for customised and series production. Whether small, medium or large quantities - we manufacture your parts precisely to specification and set the highest quality standards. Reliable and punctual processing is a matter of course for us.
Our modern machines, including WFL, DMG, Gleason and TOSHULIN, guarantee high-quality individual and series production. You are welcome to visit our production facilities in Arnsberg to gain a personal impression of our manufacturing capabilities.

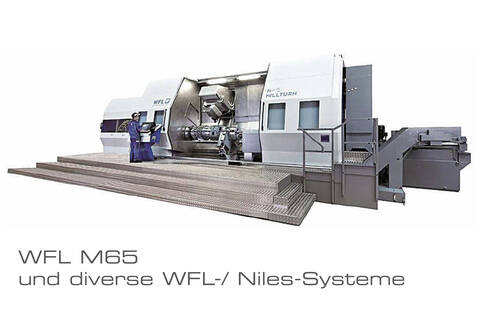

Turning / Multicutting
vertical turning
diameter: 2.000 mm
height: 1.500 mm
weight: 10 t
horizontal turning
diameter: 1.000 mm
height: 3.000 mm
weight: 3,2 t

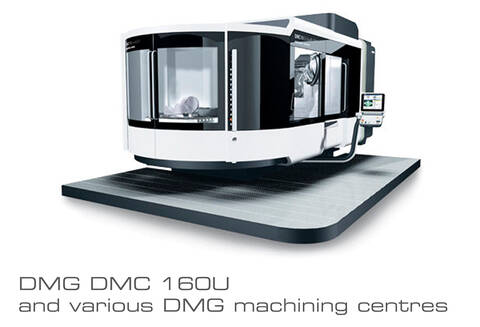

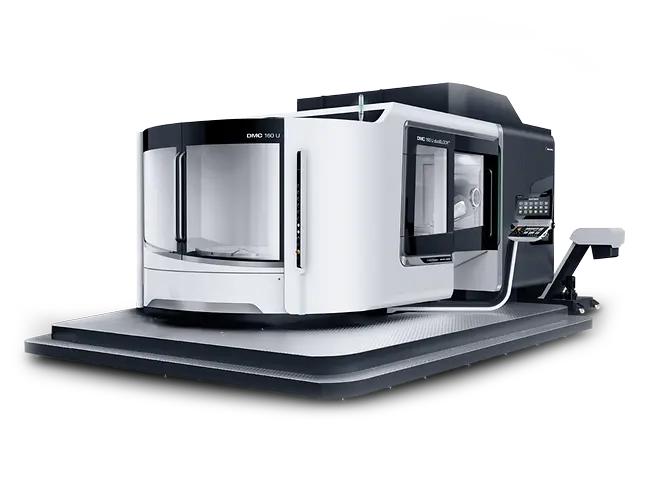

Milling / Drilling
Machining center large Milling / Drilling
table dimensions: : 1.200 mm x 1.200 mm
effective diameter: 1.400 mm
height: 1.100 mm
weight: 2 t
Machining center small Milling / Drilling
table dimensions: 500 mm x 400 mm
effective diameter: 400 mm
height: 400 mm
weight: 700 kg

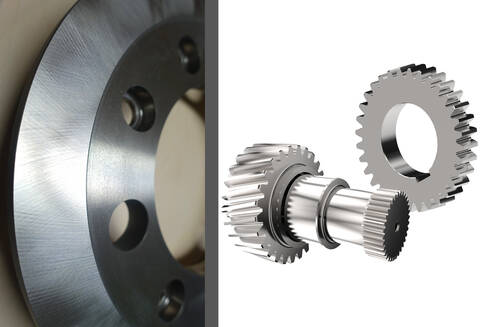

Grinding
external cylindrical grinding
swing diameter: 355 mm
length: 1.500 mm
weight: 1 t
internal cylindrical grinding
outside diameter: 500 mm
depth: 250 mm
weight: 500 kg

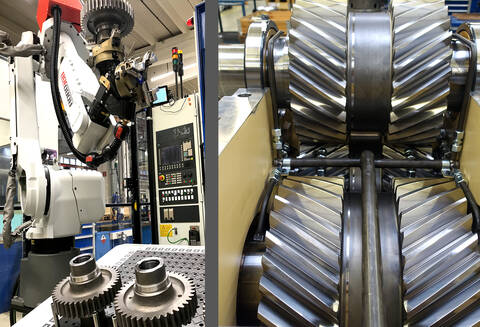

Toothing
gear shaping
outer diameter: 2.000 mm
hight: 1.000 mm
module: 2 – 22 mm
gear milling
outer diameter: 1.500 mm
hight: 1.000 mm
module: 2 – 16 mm
gear grinding - external
outer diameter: 1.000 mm
hight: 1.500 mm
module: 2 – 20 mm
gear grinding – internal
outer diameter: 800 mm
inside diameter: 180 mm
hight: 800 mm
module: 2 - 6 mm

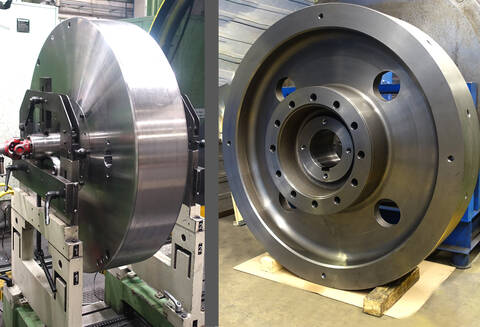

Grooving / Balancing
Grooves 3 - 90 mm in bore
diameter: 13 mm – 500 mm
slot length: 625 mm
1 and 2 plane balancing
diameter: 2.000 mm
length: 1.000 mm
weight: 5 t
Measurement
Gear measuring machines
outer diameter: 1.000 mm
height: 1.300 mm
module: 2 – 22 mm
weight: 2,2 t

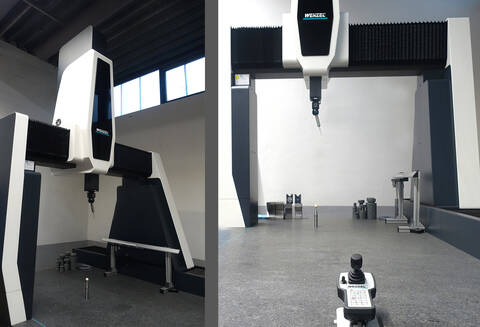

coordinate measuring machine
1.000 mm x 2.500 mm x 1.000 mm
